European Version Hammer Crusher Plant

European version hammer crusher plant plant overview European version of the coarse hammer crusher plant , engaging in crushing various rocks and stone

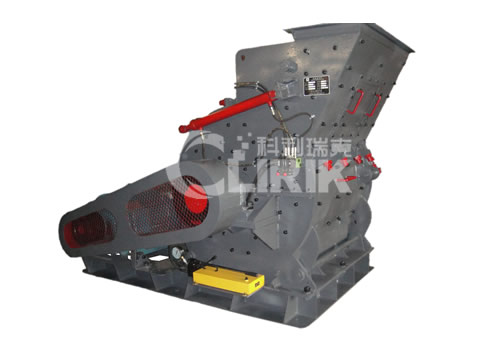

European version of the coarse hammer crusher

European version hammer crusher plant plant overview

European version of the coarse hammer crusher plant, engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPa into fine and micro fine powders, is widely used in meta
European version of the coarse hammer crusher plant, engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPa into fine and micro fine powders, is widely used in metallurgy, mining, chemical, cement ,coal, sand-making, coal gangue, construction, refractory materials and ceramic industries.

Features of European version hammer crusher plant:

High manufacturing capacity and low power consumption;
Uniform particle size with high crushing ratio;
Simple structure;
Easy operation and low investment.

Working principle of European version hammer crusher plant:

European version hammer crusher plant mainly consists of frame, rotor, support iron and grate bars. The frame is divides into two parts: upper part and low part, which are welded by steel plates after being cut. Liners made of high manganese steels within the frame can be replaced after being worn out. The rotors consist of turnplates, pin shafts, and hammers which are grouped regularly in the main shaft. The main unit drives the main shaft through the motor and triangle belts, which, in turn, rotates the rollers. Large materials entering the crusher through the feed inlet are firstly crushed by the high-speed hammers, and the thrown fiercely to the support iron for further crushing. Qualified materials crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the grate bars. The gap between the rotors and the grate bars can also be adjusted according to different requirement. To avoid the plugging of the crusher, the proportion of water for the crushing material is no more than 20%.

Performance and parameter of European version hammer crusher plant:


Type

 PC4008-75

 PC4012-90

 PC4015-132

 Rotor Diameter (mm)

 750

 900

 1150

 Rotor Width(mm)

 800

 1200

 1500

 Rotor Speed r/min

 800-1000

 800-1000

 550-800

 Max Feeding Size (mm)

 <50

 <60

 <80

 Finished Size(mm)

≤3

 ≤3

≤3

 Capacity (T/H)

 10-30T

30-60T

 50-100T

 Power (KW)

 55-75

 75-90

 110-132

 Hammer Number

 18

 32

 32

 L*W*H/mm Layout Size

 2310*1665*1610

 2840*2100*2020

 3720*2650*2540
