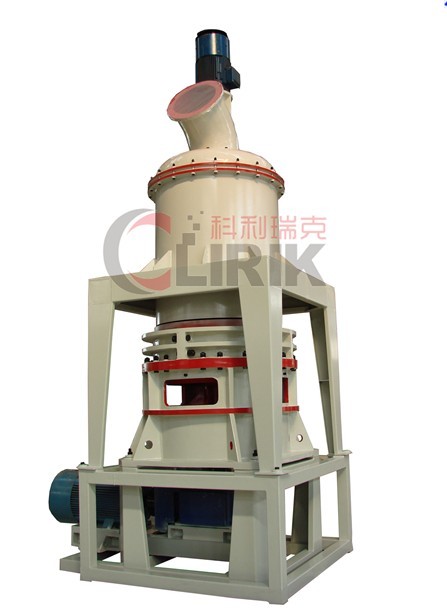

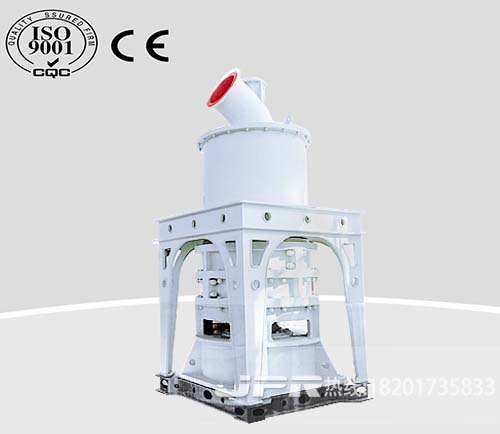

Kaolin Crushing Plant

The application of kaolin in other industries, is must be processed and made into fine powder, can add to the other materials to use. Various industria

The application of kaolin in other industries, is must be processed and made into fine powder, can add to the other materials to use. Various industrial departments of different USES of kaolin has a specific size and fineness requirement, in order to meet the paper, plastic and rubber products such as industrial have higher fineness request for kaolin Raymond mill, it is necessary to increase the fineness of kaolin, thus improve the quality of the product. And kaolin after mining, it is first to need kaolin crusher for crushing again by other equipment for processing, mai mechanical kaolin crushers have multiple choice, according to different choose the crusher with high speed production line.


Features of Kaolin Crushing Plant

1,High Efficiency

Under the same finished final size and the same motor power, the capacity of pyrophyllite stone crushing plant is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.

2,Long lifecycle of spare parts

The ring and roller are forged by special material with high utilization. Under the same crushing material and finish special size, the life cycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.

3,High safety and reliability

As no rolling bearings or screws in ginding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.

4,High fineness and flexible adjustment

The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 meshes(47-5 micron), and the product fineness can reach D97≤5micrometre.

5,Environment-friendly

The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.

6,Advanced intelligent speed control device

Convenient adjusting, more uniform particle size.

Technical data of pyrophyllite stone crushing plant

Model HGM80 HGM90 HGM100 HGM100A HGM125
Ring Diameter(mm) 800 900 1000 1000 1250
Ring Number/pcs 3 3-4 3-4 4 4
Roller Number/pcs 21 24-32 27-36 27-36 40-44
Main Shaft Speed/r. p. min 230-240 200-220 180-200 180-200 135-155
Input Size/mm ≦15
Finished Size/um 5-47(325-3000)
Capacity t/h 0.4-4.5 0.4-5.5 0.4-6.5 0.4-7.5 0.7-10
Outlet Size L*W*H/m 13.9*4*6.2 14.7*4.8*7.2 18*4.6*8.6 18*4.6*8.6 14*9*10.25
